sensor
Controller:
1.Use a sine wave control the motor torque ripple is minimized to achieve no noise no vibration smooth and comfortable of driving vehicle;
2. Increase the low speed district of motor torque to meet the high torque requirements of the vehicle during its start-up and climbing improving climbing performance zero start-up is available;
3. Improve the operating efficiency of the motor; reduce the controller temperature-rise increasing the vehicle continuous mileage;
4. With a multi-protection functions such as the stall over-current over-temperature under-voltage speed driving phase shortage output short circuit etc. so as to protect the vehicle electronic control systems and traffic safety.

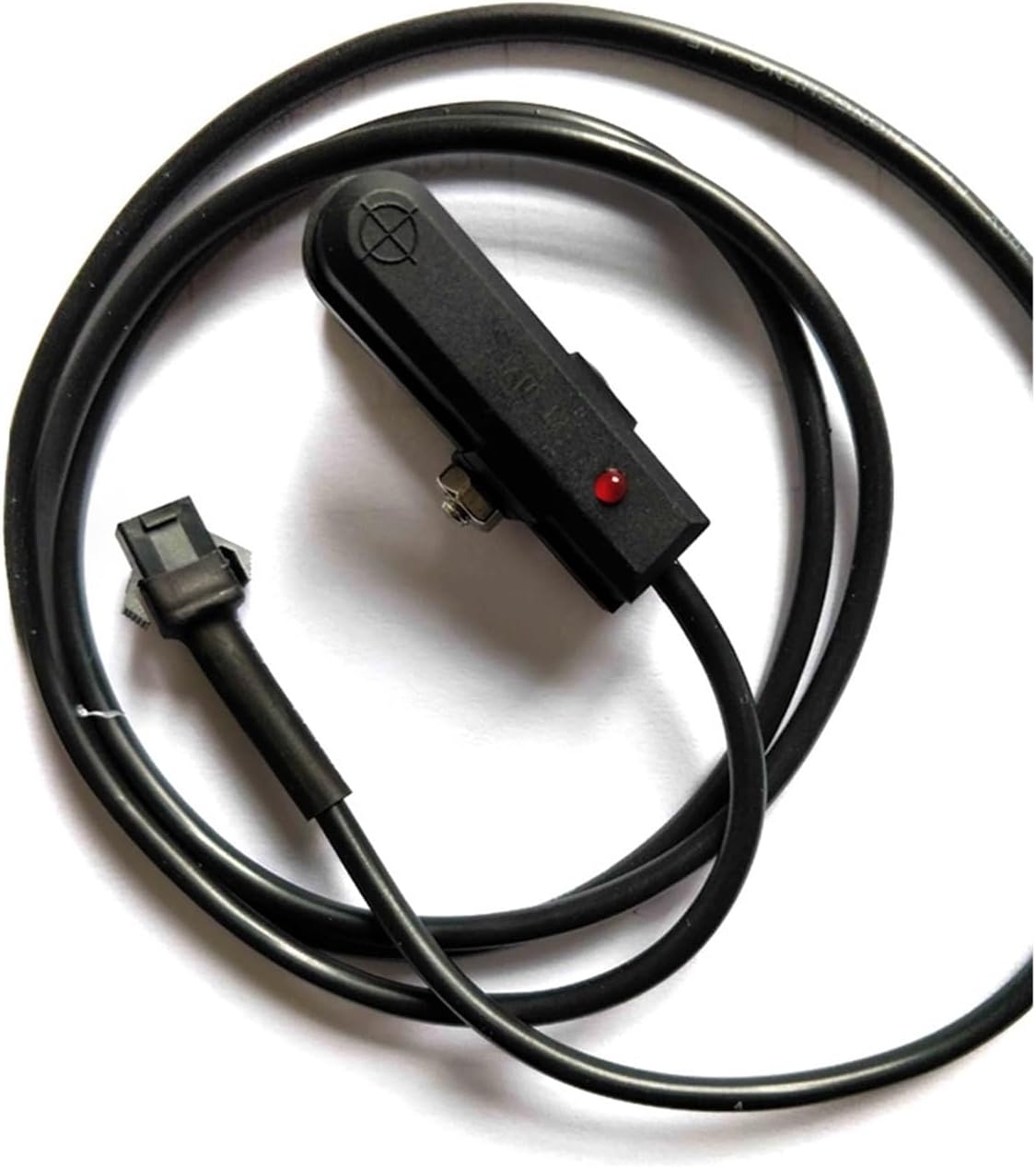

Torque Sensor:
Lead mode : Three-wire
Black wire: Negative electrode
Brown wire: Power
Standard interface : SM-3Y
Length of cable 100cm for bulk order we can customize the length of the cable for customers
1* KT controller
1* TSP
KT Controller main technical parameters:
1. Rated voltage: DC36/48V;
2. Rated current: 12±1A;
3. Maximum current: 25A±1A;
4. Min. Voltage & Undervoltage protection DC30V4005V
5 Rated power: 432/576W;
6. Maximum power: 900/1200W;
7. 9 pcs MOSFET
<;;50mA;
9. Under-voltage protection: it can be set according to customer requirements
10. Driving mode: sine wave
11. Waterproof: basic protection of water washout IP64
12. Electromagnetic compatibility (EMC) : outgoing lines can be added with the jacketed ring for interference protection
13. Lights drive: Optional headlight control and instrument headlight indicator
14. Housing holder: both ends are with the ears
15. Product certification: CE certification
16. Dimensions: 140x68x41mm
17. Weight: 365g
sensor
Easy Installation: Easy to install and use Good experience excellent working performance realize noise-free vibration-free operation
Wild Applications: Accessories suitable for electric bicycles scooters mini bikes etc，Electric Motorcycle Scooter
