Product description
Upgrade your electric bike’s safety and visibility with this comprehensive ebike light kit featuring a powerful 400-lumen headlight and smart taillight system.
The ebike headlight 3 Pin, with horn, provides excellent forward illumination while the innovative taillight incorporates turn signals and brake light functionality.
Compatible with 24V/36V/48V systems, this kit includes a handlebar-mounted switch for easy control of all lighting functions.
Installation is straightforward with the included wiring harness – the front light cable extends 150cm, and the taillight reaches 170cm. The switch features a 150cm cable and fits standard 22mm handlebars.
Perfect for enhancing both safety and style on your electric bike, this kit provides essential lighting features for day and night riding.
POWER & CONNECTOR COMPATIBILITY WARNING
Please verify two critical specifications with your eBike before ordering:
POWER OUTPUT: This ebike light kit requires 24V-48V 5W to operate. Many eBikes provide only 6V 3W or less to their light port. If your bike’s output is below 5W, this light will not turn on. Check your eBike manual or contact the manufacturer to confirm the headlight circuit’s wattage and voltage.CONNECTOR TYPE: E-bike light connectors are NOT universal. This product power input comes with a white Male XH2.54 connector .You must check the plug type on your bike’s light wiring harness. Mismatched connectors will require cutting and splicing wires.
48V ebike light kit with turn signals rear light

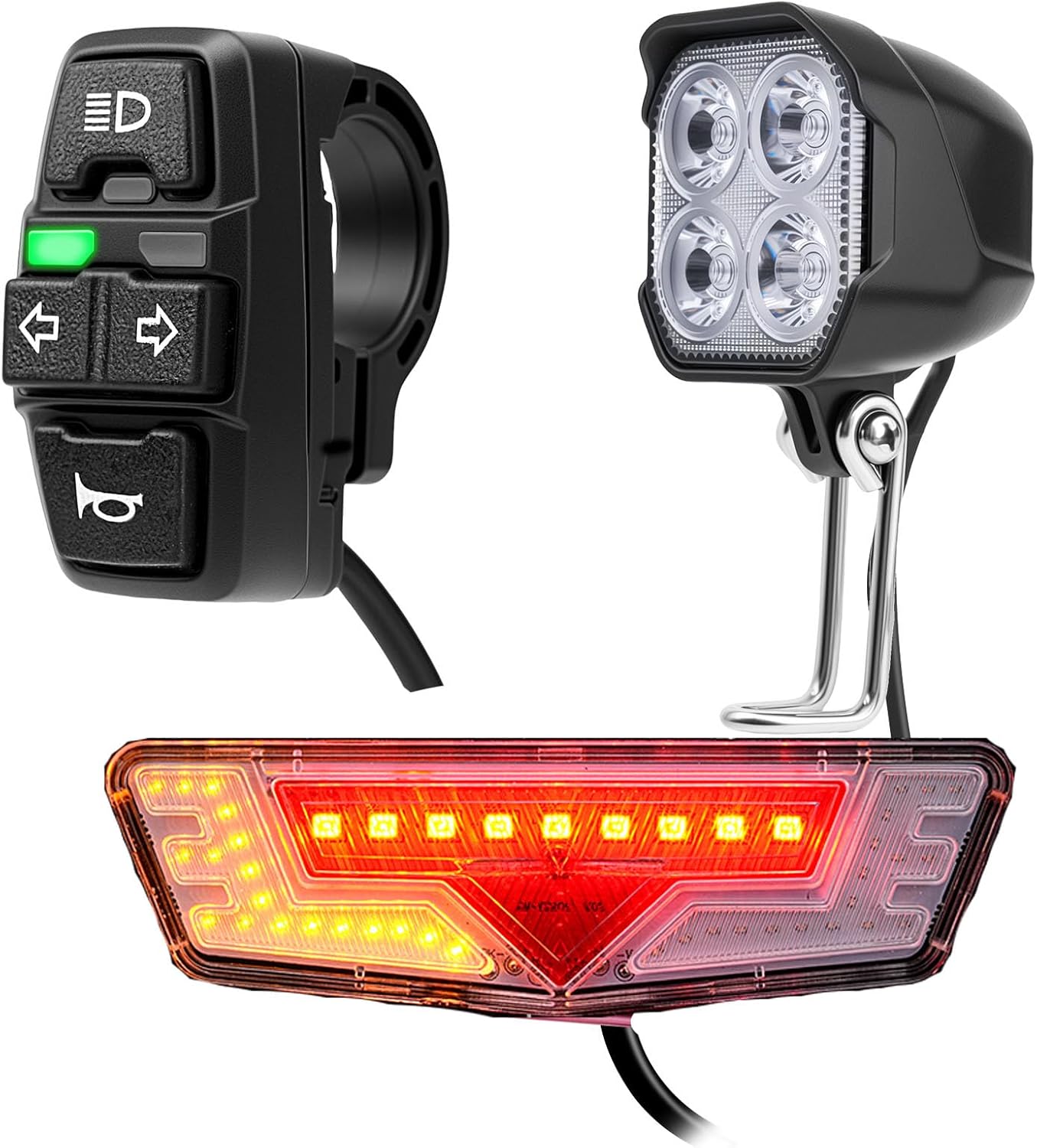

Including e bike headlight, turn sginal taillight and switch
1.Ebike headlight powerful 400 Lumen, fits for city cycling.
2.E-bike taillight with turn signal light, ensure safety.
3.Switch on handlebar to control light ON/OFF, Turn Left/Right, easy to use.
Ebike Light Kit 24V 36V 48V
E Bike Headlight 3 Pin
1. Weight :116g
2. Size: 54.7*52.5*58mm
3. Material: ABS+PC
4. Cable length: 1.5m
5. Voltage: 24V-48V
6. Power: 4W
7. Brightness: 400 lumens
Ebike Turn Signal Taillight
1. Net weight: 104g
2. Product size: 103*30*26mm
3. Material: plastic
4. Cable length: 1.7m
5. Applicable voltage: 24V-48V
6. Power: 1.3W
7. Luminous: 100LM

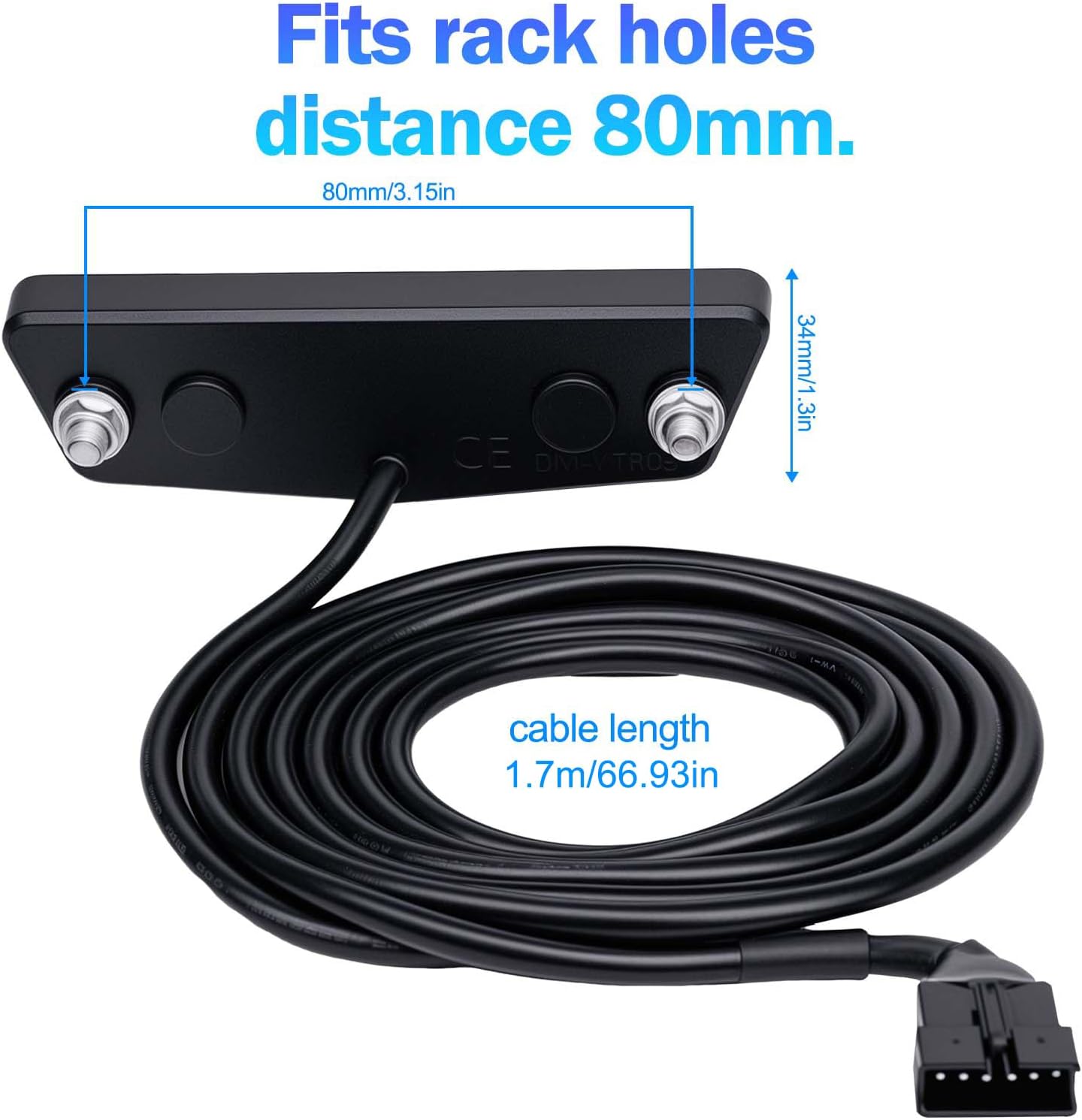

7. Fits Rack: 50mm 70mm 80mm holes distance

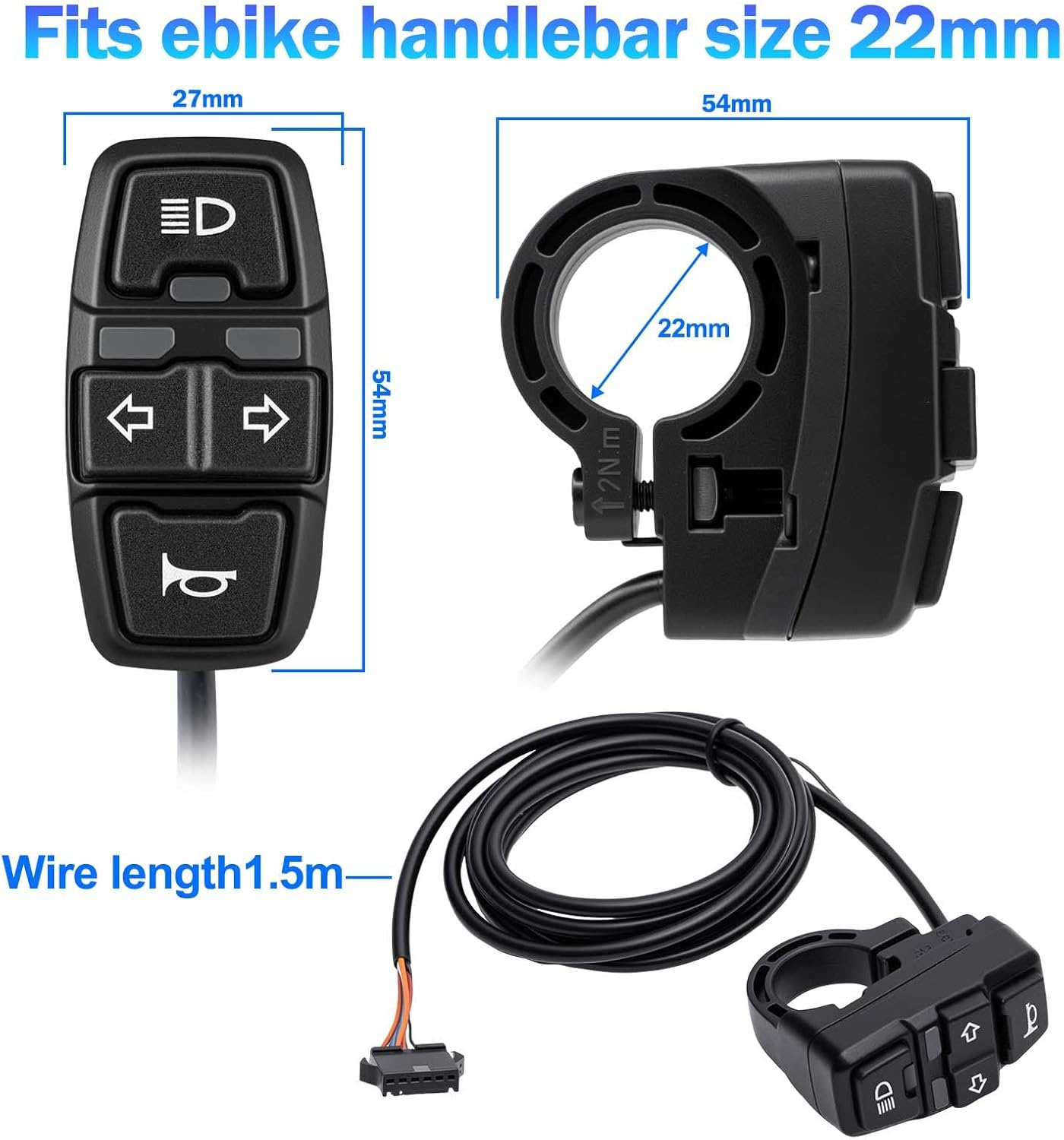

E-bike Switch
1.For handlebar size: 22.0mm
2.Product size: L54*W27*H54mm
3.Waterproof: IP65
4.Cable length: 1.5 m
5.Applicable voltage range: 24V-48V
6.Maximum working current: 1A
E bike turn signals taillight
1. Net weight: 104g
2. Applicable voltage: 24V-48V
3. Power: 1.3W
4. Cable length: 1.7m
5. Fits Rack: 50mm 70mm 80mm distance
6.With brake light function too
Package Include One Rear Light Bracket

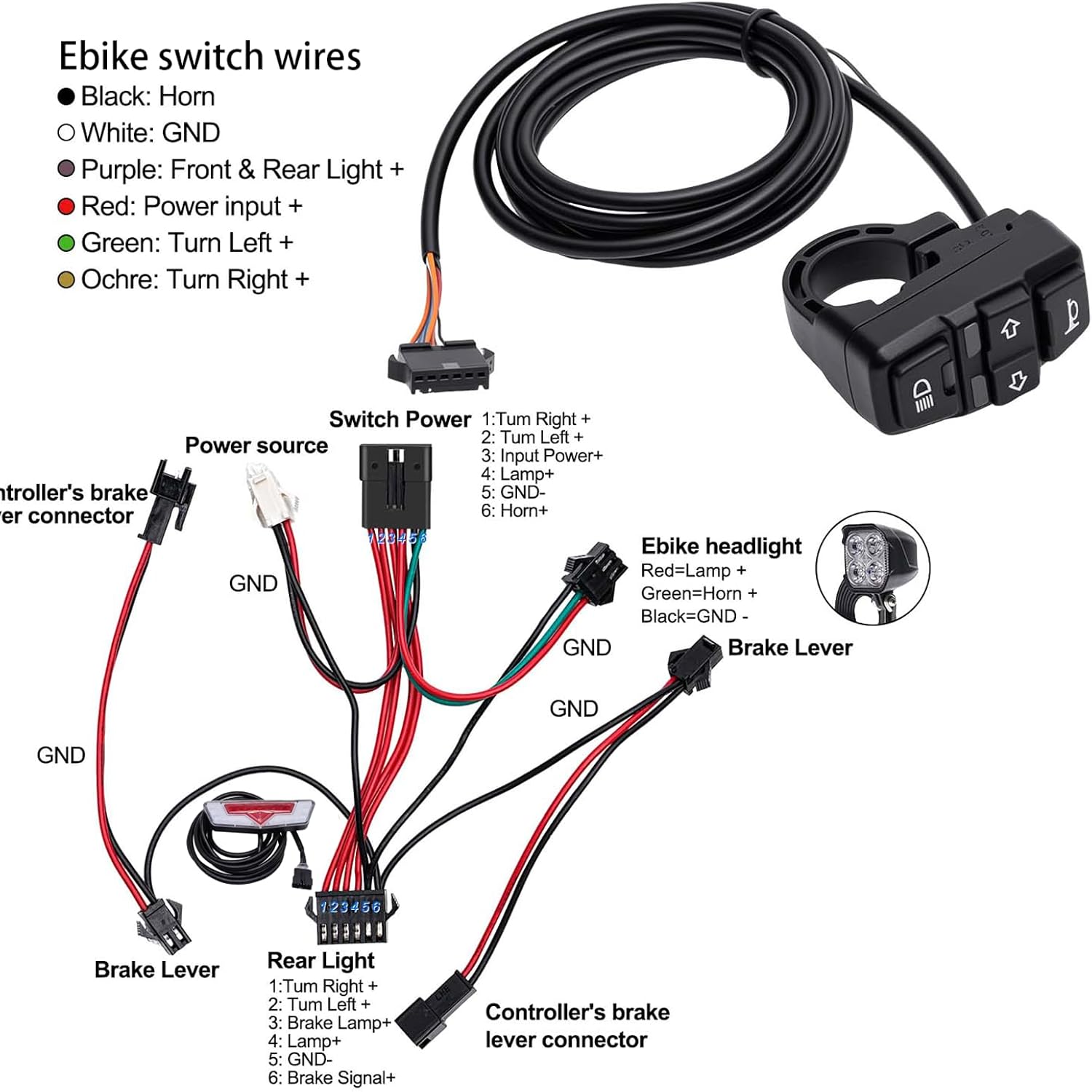

How to use the wiring harness
1. Connect your controller/battery’s light connector to the white “Power source” connector.
2.Connect the switch to the “Switch Power” connector.
3.Connect the headlight to the “Ebike headlight” connector.
4.Connect the rear light to the “Rear Light” connector.
5&6.Connect your ebike’s brake levers to the “Brake Lever” connectors(Female one).
7&8.Connect your controller’s brake connectors to “Controller’s brake lever connector” (Male one).
Add to Cart
Add to Cart
Customer Reviews
3.8 out of 5 stars 4
4.7 out of 5 stars 14
5.0 out of 5 stars 3
Price
$28.99$28.99 $29.99$29.99
— no data
Connector Type
SM Connector, not waterproof SM Connector, not waterproof Waterproof Connector
Work Voltage
24V-48V 24V-48V 12V-48V
Headlight Material
Plastic Plastic Aluminum alloy
Tail Light
No Brake Light With Brake Light No Brake Light
Taillight Fits Rack
80mm holes 80mm holes 50mm Rack Holes
Turn Signal
Taillight with Turn Signal Taillight with Turn Signal Taillight and Headlight both with Turn Signal
Switch Control
Handlebar Wired Switch Handlebar Wired Switch Handlebar Wireless remote remote control
COMPLETE KIT: Includes 400 lumens ebike headlight, turn signal taillight with brake light function, and handlebar switch for comprehensive bike lighting system
VERSATILE POWER: Compatible with 24V/36V/48V electric bike systems, ebike front light draws 4W power while taillight uses 1.3W for efficient operation
MOUNTING SPECS: Taillight fits racks with 50mm 70mm 80mm hole spacing, switch fits 22mm handlebars, includes generous cable lengths (headlight 1.5M, taillight 1.7M, switch 1.5M)
LIGHTING FEATURES: Headlight provides 400 lumens brightness, taillight offers turn signals and brake light functionality with 100LM output
POWER & CONNECTOR COMPATIBILITY WARNING This ebike light kit requires 24V-48V 5W to operate. Many eBikes provide only 6V 3W or less to their light port. If your bike’s output is below 5W, this light will not turn on. E-bike light connectors are NOT universal. This product power input comes with a white Male XH2.54 connector .You must check the plug type on your bike’s light wiring harness. Mismatched connectors will require cutting and splicing wires.
